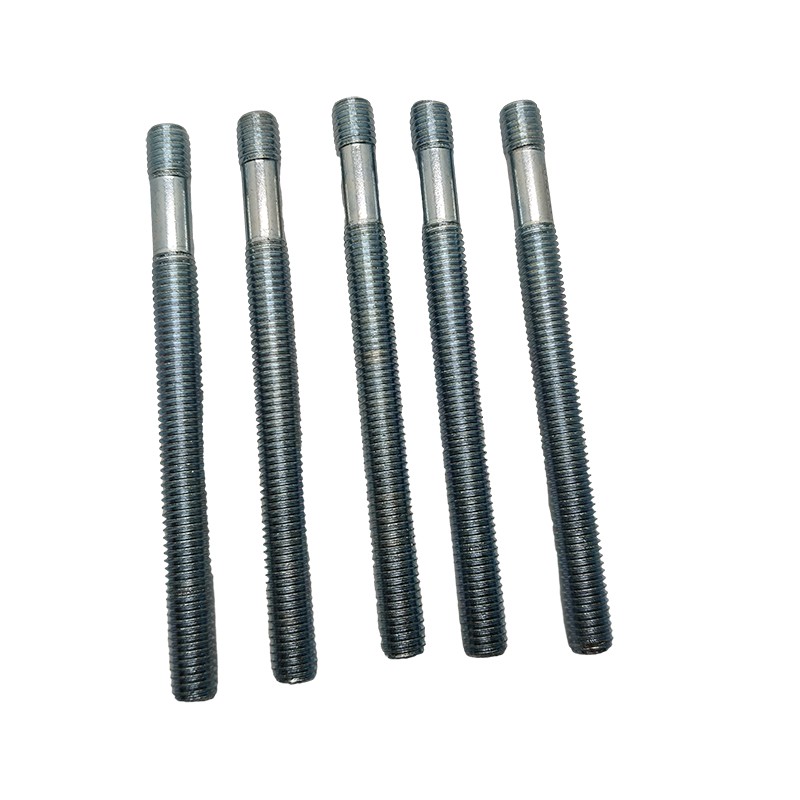

B7 Stud Bolt with Heavy Nut PTFE

Jiaxing Aoke hardware is a fastener manufacturer and vendor in China. A193 B7 stud bolt is a high strength, heat treated and hardened alloy steel fastener suitable for applications in high pressure and high temperature environments. The A193 B7 stud bolts with heavy nuts PTFE offer excellent tensile strength and resistance to corrosion, making it suitable for the oil and gas, petrochemical, power generation and other industries. Aoke can provide DIN diameter M3-M72 and American standard ASTM 1/8’’ -3 1/2’’ of B7 stud bolts. The length, chamfer and head mark of stud bolts are customized according to customer requirements. The surface finish according to custom, black, PTFE and Teflon. All B7 stud bolts are produced in strict accordance with the international standard to ensure size, material and mechanical properties.

Send Inquiry

Product Description

Jiaxing aoke hardware as a Chinese professional producer and supplier of A193 B7 stud bolts and A194 2H heavy nuts, stud bolts and heavy nuts are manufactured to the ASTM A193 A194 standard, which made of alloy steel and has been thoroughly thermal treatment to achieve the mechanical properties it required. This includes quenching and cooling to enhance its strength and toughness, and to ensure its ability to withstand extreme operating conditions.

The A193 B7 thread rods are usually used in combination with the A194 2H hexagonal nuts. One stud is used with two A194 2H heavy hex nuts. Both stud bolts and nuts are heated. When used together, the combination of A193 B7 stud bolts and A194 2H nuts form a reliable fasten system.

To increase the corrosion resistance of the stud bolts, Aoke can provide A193 B7 stud bolts with PTFE surface. The Salt spray of B7 stud bolts with PTFE can meet 1000 hours. Another advantage of B7 studs with teflon xylan is to judge the installation period based on the different colors of PTFE.

Product Parameter (Specification)

Standard	DIN,ASTM/ANSI/ Standard	Material	B7, 42CrMo
Surface Treatment	Black,PTFE XYLAN	Size	M3-M72 1/8’’-3-1/2’’
Grade	A193 B7	Head type	No Head
Packing	Bulk cartons with pallet, wooden case, bundle with pallet	Lead time	Busy season:20-30days,Slack season:10-20days
