Hammer Bolt for Solar PV Mounting

Jiaxing Aoke Trading is a professional manufacturer and supplier of solar fasteners in China, have own factory which has a long history. Aoke has a complete range of solar installation accessories. Photovoltaic hammer T-bolts are special T-bolts for solar photovoltaic brackets. It is directly put into the aluminum profile groove and fixedly connected by threads. It is often used with the DIN6923 flange nut, and is mostly used for aluminum profiles. A large stock of SS304 hammer T head bolts and a large number of free samples, factory prices are extremely competitive, export to solar installation company each year.

Send Inquiry

Product Description

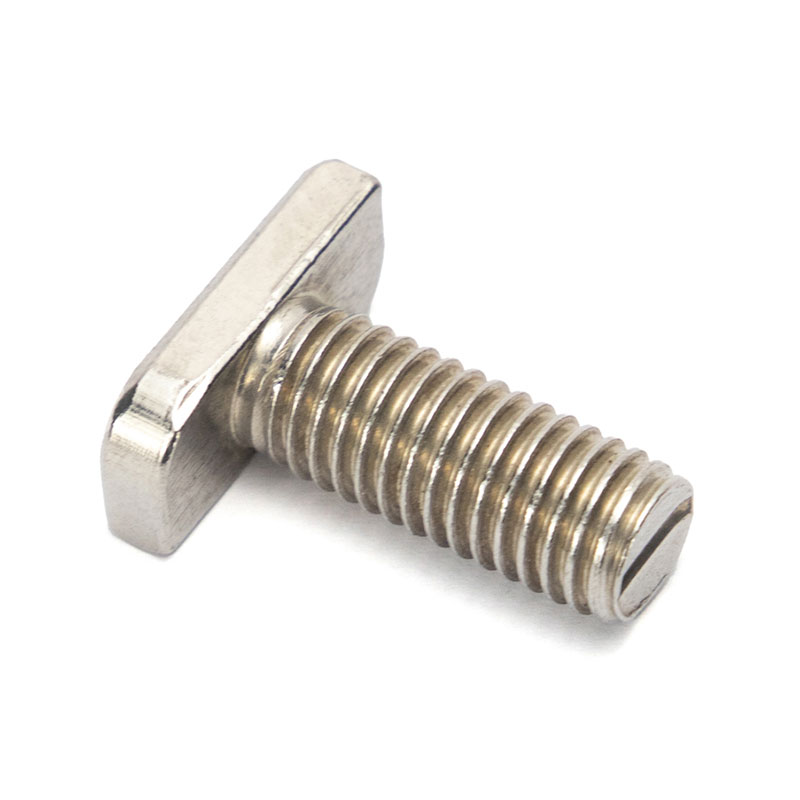

Hammer Bolt for Solar PV Mounting

Photovoltaic hammer bolts are special T-shaped bolts for solar photovoltaic brackets.The threaded diameter is M8 M10. It is directly put into the aluminum profile groove and fixedly connected by threads. It is a standard matching connector when installing corner fittings, and is often used in conjunction with flange nuts. It is mostly used for aluminum profiles, and T-bolts of different specifications and lengths can be selected according to different profiles, groove widths and installation requirements.

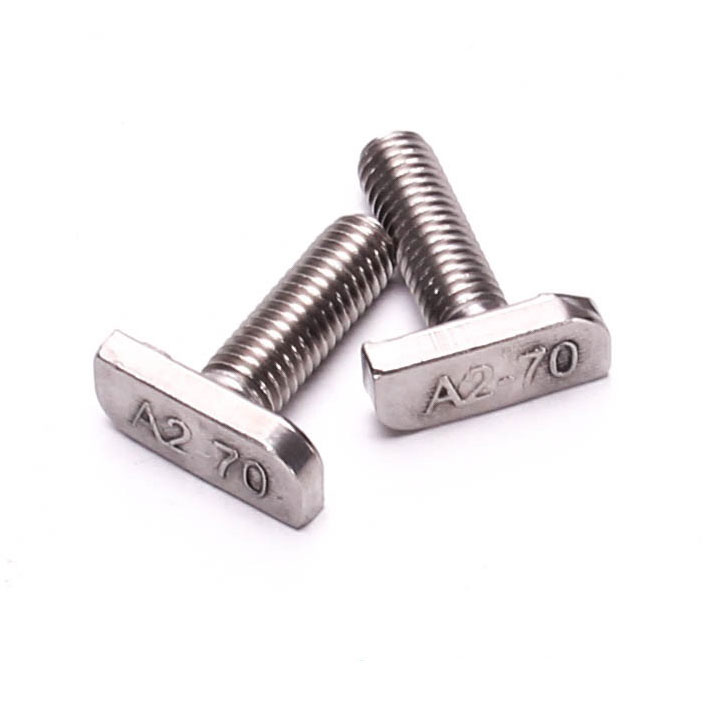

The material of solar photovoltaic hammer bolts is SS304, head mark is A2-70.Compared with carbon steel, stainless steel 304, because it contains 18% chromium and 8% nickel, has better acid and alkali resistance and corrosion resistance.

Product Parameter (Specification)

Standard	DIN,ASTM/ANSI JIS EN ISO,AS	Material	SS304 SS316
Surface Treatment	Plain, Passivation	Shank	Full thread
Grade	A2-70 A4-70	Size	M8 M10
Unite	Piece	Head type	T head/ hammer head
Packing	Bulk cartons with pallet, small boxes in cartons with pallet	Lead time	Busy season:20-30days,Slack season:10-20days
