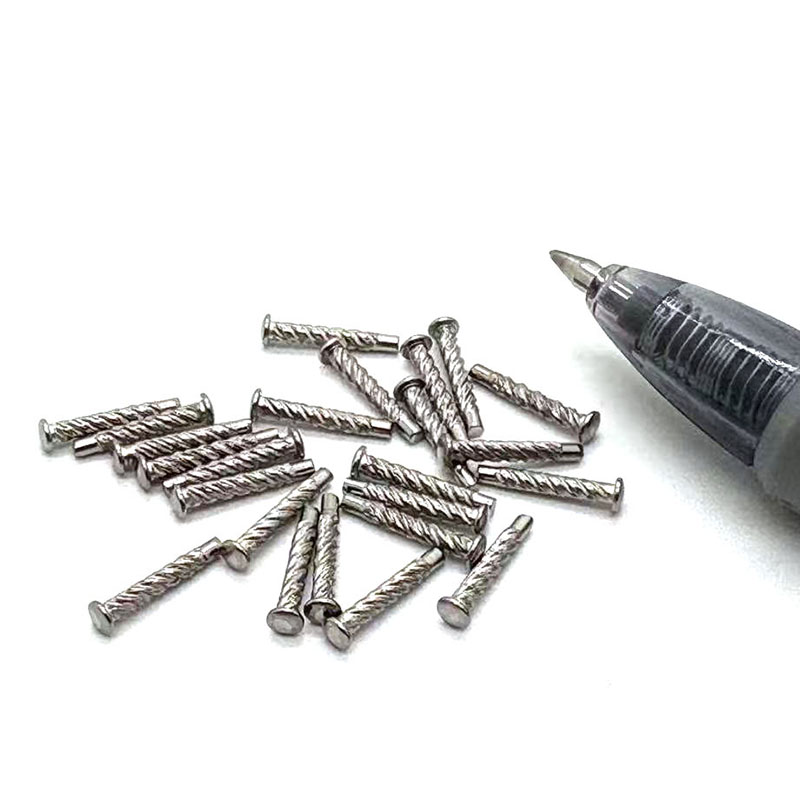

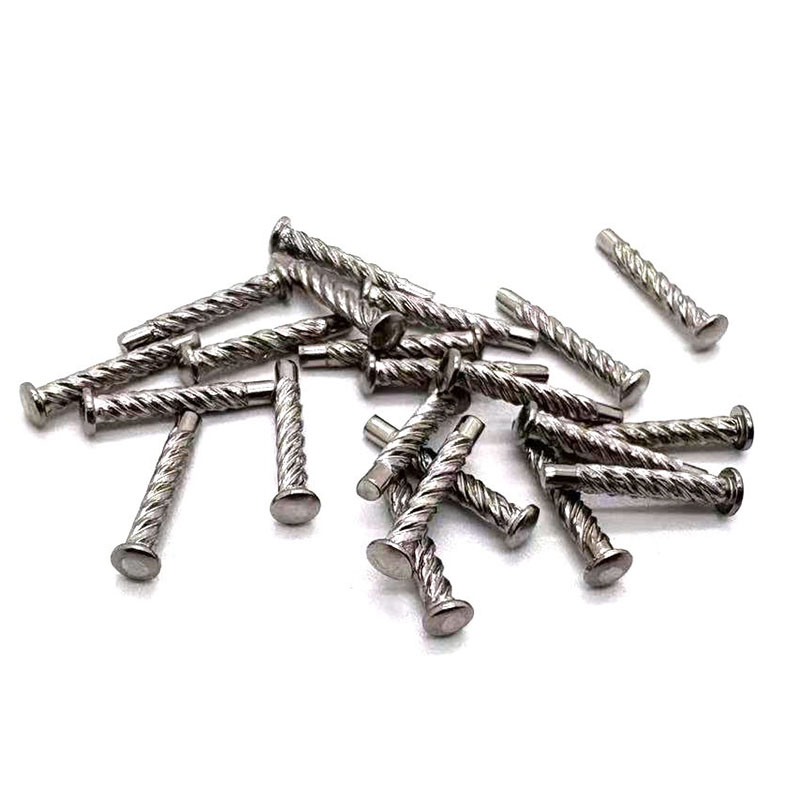

Micro size ASME B18.6.3 Round Head Type U Drive screws

Jiaxing Aoke hardware is a Chinese drive screws manufacturer. Our factory has been certificated ISO9001 and has many years experience of producing Micro size ASME B18.6.3 Round Head Type U Drive screws. ASME 18.6.3 (T5-1) is the dimensional standard for round head U-type metal drive screws. These drive screws have a special thread structure and allowing them to be inserted into the work piece under pressure. Once inserted, the ASME 18.6.3 (T5-1) round head U-type metal drive screw is difficult to unscrew, making it suitable for tamper-proof designs. Micro size ASME 18.6.3 round head drive screws have a thread diameter of #00, ranging from 1.46 to 1.52 mm. They are manufactured using high-precision molds and cold heading processes to ensure precise thread tolerances. Miniature round head U-type metal drive screws are suitable for securing plastic parts, such as those in automobiles, toys, and household appliances.

Send Inquiry

Product Description

You are welcomed to come to our factory to buy Micro size ASME B18.6.3 Round Head Type U Drive screws, we can provide competitive price and available samples of round head drive screws to you. We look forward to cooperating with you. ASME 18.6.3 (T5-1) type U metal drive screws with a round head, the head height is lower than pan head, suitable for electronic device housings, precision instruments, and plastic parts, the surface is clean and aesthetic after tapping. "Type U" indicates the thread with a helical structure with self-tapping capability. Miniature round head U-type metal drive screws are available in sizes #00, #0, and #2, ranging from 1.46-2.03 mm. Micro size ASME 18.6.3 round head drive screws are used to connect tiny and precision plastic parts. Despite their small diameter, they play a vital role in a variety of applications.

Product Parameter (Specification)

Standard	DIN,ASTM/ANSI/ Standard	Material	carbon steel, stainless steel 303 304, brass, and aluminum
Surface Treatment	galvanized, nickel -plated, chrome -plated, black, electrophoresis	Size	#00, #0, #2 1.46-2.03mm
Unite	Piece	Head type	Round Head
Packing	Small polybags in carton, small boxes in cartons with pallet	Lead time	Busy season:20-30days,Slack season:10-20days

Product Application

ASME 18.6.3 (T5-1) round head U-type metal drive screw is widely used in digital products, cameras, computer, phone, glasses, clocks, machine, electronic equipment, automobiles, toys, and household appliances. etc.
