P-Type Strut Clamp - Professional Strut Channel Fasteners

In electromechanical, fire-fighting and HVAC projects, the reliability of pipeline fastening determines the long-term safety of the whole system. As special fasteners for strut channel, strut clamps (P-type pipe clamps) are widely adopted for pipe and cable installation due to convenient clip-on structure.

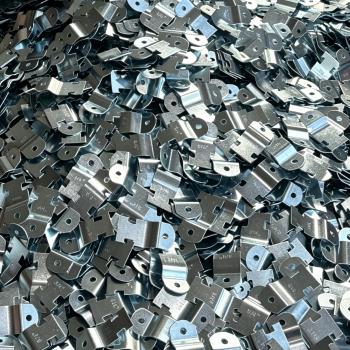

The P-type strut clamp is a professional fastener designed for standard strut channel systems. Featuring an integrated curved hoop structure, it cooperates with bolt and washer sets to hold pipes tightly. The full-contact arc design ensures uniform force distribution for various round pipes and tubing.

Core Advantages

1.Vibration-resistant locking structure

Continuous mechanical vibration and fluid impact often cause loose pipe fittings. The full-contact curved structure disperses pressure and avoids displacement, ensuring long-term stable pipe fixing and reducing maintenance risks.

2.Modular and weld-free assembly

Fully adapted to modular pipe installation standards. The clamp can slide freely in strut channels for flexible positioning, greatly saving on-site construction time and avoiding secondary processing.

3.Multi-material and multi-finish options

Customizable materials and surface treatments meet dry indoor, damp underground, outdoor weathering and chemical corrosion scenarios, supporting accurate project selection.

4.Reusable and easy to maintain

The clamp can be disassembled and reinstalled during pipe renovation and equipment upgrading without structural damage, effectively lowering long-term operation costs.

Application Scope

• Fire-fighting: sprinkler and fire water pipe fixing.
• HVAC: refrigerant, water and auxiliary duct line fixing.
• MEP installation: cable tray, conduit and harness fixing.
• PV / new energy: support frame, inverter and cable conduit fixing.
• Building water supply & drainage: indoor and rainwater pipe fixing.
• Industrial plants / overseas infrastructure: steel-structure plants, warehousing and comprehensive pipeline fixing.

     Key Assembly Guidelines

     1. Model Selection: Match the P-type strut clamp specification according to pipe outer diameter and load-bearing requirements. Thickened clamps are preferred for heavy-duty pipelines, while stainless steel or hot-dip galvanized             clamps are selected for corrosive environments to ensure fitness and durability.

2. Positioning Standard: The clamp can be freely slid and positioned in the strut channel. Calibrate the horizontal and vertical accuracy of the pipe before bolt tightening to avoid pipe deviation and uneven stress.

3. Tightening Specification: Fasten bolts evenly with flat washers and spring washers step by step. Avoid excessive unilateral force that may cause clamp deformation or pipe surface damage, ensuring long-term vibration resistance and anti-loosening performance.

4. Environment Adaptation: For outdoor and humid working conditions, check the integrity of the surface coating before installation. Keep clamp cutting edges and exposed parts away from ponding and acid-base media. Add fixing points for pipelines with frequent vibration to enhance overall stability.

5. Maintenance Reserve: Reserve sufficient inspection space after assembly. The clamp can be disassembled and reinstalled directly for pipeline renovation and equipment debugging without damaging supports and pipelines, realizing reusable assembly.
