Nylon Patch Anti-Loosening Technology: How High-Performance Industrial Fasteners Adapt to Precision Automation
Recent global hardware industry analysis reveals a clear shift in procurement standards for industrial fasteners. More equipment manufacturers are shifting focus from simple raw material cost control to long-term connection reliability, especially within precision automation assembly scenarios. Continuous equipment vibration easily causes screw back-off, triggering unplanned downtime, maintenance expenditure and hidden safety risks. Meanwhile, global buyers are paying higher attention to supplier supply chain resilience, requiring vendors to deliver consistent quality alongside stable delivery schedules.
Against this market backdrop, nylon patch locking technology has become one of the most cost-effective anti-vibration fastening solutions. Different from ordinary standard fasteners, nylon patch set screws feature standardized size systems and diversified end types, which directly affect assembly fit and positioning accuracy.
What Is Nylon Patch Anti-Loosening Technology？

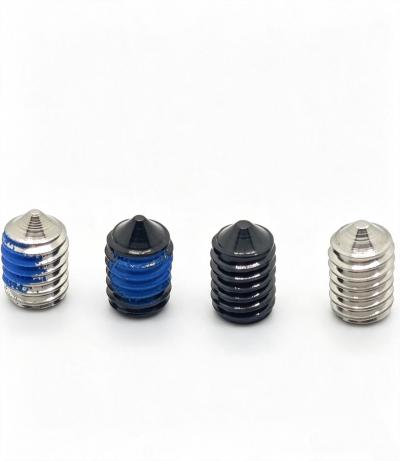

A section of screw threads is permanently coated with blue nylon material. When the screw engages into the threaded hole, the nylon layer is compressed to generate lasting prevailing torque friction resistance. This structure effectively prevents loosening under sustained vibration, impact and temperature fluctuation, solving the common vibration loosening defect of traditional fastening parts.
Nylon Patch Set Screw Common Specifications & End Type Size Comparison
The end structure of grub screws directly determines the effective tightening length, contact area and positioning accuracy. Different end types cannot be universally replaced in precision assembly. Below is a standardized specification table of mainstream nylon patch set screw sizes and end-type dimensional characteristics for global procurement reference.
|
Screw End Type |
Common Thread Diameter Range |
Common Length Range |
Dimensional & Assembly Characteristics |
|
Cone Point |
M3 / M4 / M5 / M6 / M8 |
4mm–20mm |
Cone tip occupies tiny positioning space; effective thread length is basically consistent with nominal length; high centering accuracy, small assembly gap |
|
Cup Point |
M3 / M4 / M5 / M6 / M8 |
5mm–25mm |
Arc concave end increases contact area; partial length loss at the arc bottom; stronger anti-slip performance than cone point |
|
Flat Point |
M2.5 / M3 / M4 / M5 / M6 |
3mm–18mm |
Flat end has no length loss; full thread effective utilization; smooth contact without scratching the fitting surface |
|
Dog Point |
M4 / M5 / M6 / M8 |
6mm–30mm |
Cylindrical protruding end requires reserved matching groove; nominal length includes protruding part, with strict size matching requirements |
Key Technical Note
For precision automated assembly, the end type will directly affect the effective fastening stroke. When customers confirm customized nylon patch set screws, we will match the most suitable end structure and length tolerance according to the equipment matching structure, avoiding assembly failure caused by size deviation.
Core Advantages of Nylon Patch Set Screws
1. Clean assembly & reusable locking capability
Different from liquid thread locker, pre-coated nylon patch avoids glue overflow and workpiece contamination. Limited repeated disassembly is supported without obvious attenuation of anti-loosening performance, perfectly matching automated assembly production lines.
2. Stable torque consistency batch to batch
Coating thickness is controlled under standardized manufacturing procedures. Assembly torque maintains stable data among different batches, helping clients pass strict overseas incoming quality inspection.
3. Wide adaptability for multiple working environments
Suitable for precision instruments, automation equipment, electronic components and precision fixtures. The nylon coating provides auxiliary moisture isolation for moderately humid operating conditions.
4. Customizable size & structure
We support tailored thread diameters, lengths, end types, coating positions and surface treatments to solve personalized fastening problems for non-standard equipment.
Nylon patch stainless steel anti-loosening fasteners perform excellently under medium & light-load vibration environments. However, they cannot fully replace heavy-duty mechanical locking solutions used for severe shock and high-load working conditions.In addition to size parameters, it is recommended to specify the vibration frequency, load value, and operating temperature of the equipment in order to provide accurate product selection and end matching solutions.
Jiaxing Aoke Trading Co., Ltd. supplies standard and customized nylon patch set screws, covering full specifications of multiple end types. If you are troubled by vibration-induced screw loosening or uncertain about size selection, welcome to contact our engineering team for technical consultation and formal quotation.
