Solar Panel Clamps

SS430 Solar Panel Clamps
Material: SS430
Surface:Sandblasting/Zinc/Black/Anodized and Polished...
Jiaxing Aoke Hardware, We are one of China’s famous suppliers of solar PV system components，we can provide professional, one-stop solutions for your projects. Our PV components are among our best-selling products, renowned for high quality, durability, and competitive pricing, we have earned the trust and favor of many international customers. Solar Panel Clamps are available in customizable sizes, both materials and surface treatment can be tailored to your project’s specific requirements. We offer samples upon request and are committed to providing excellent after-sales service and timely delivery. Feel free to place your order.

Send Inquiry

Product Description

Product Parameter (Specification)

Size

Customized

Material

SS430

Surface Treatment

Zinc, Black, Anodized and Polished, Flat Paint, Sandblasting, Zinc-Aluminum-Magnesium

Application

Machinery, Environmental, Building, Furniture, Electronic

Packing

Bulk cartons with pallet or customized packing

Lead time

Peak season:20-30days

Slack season:10-20days

Product description：

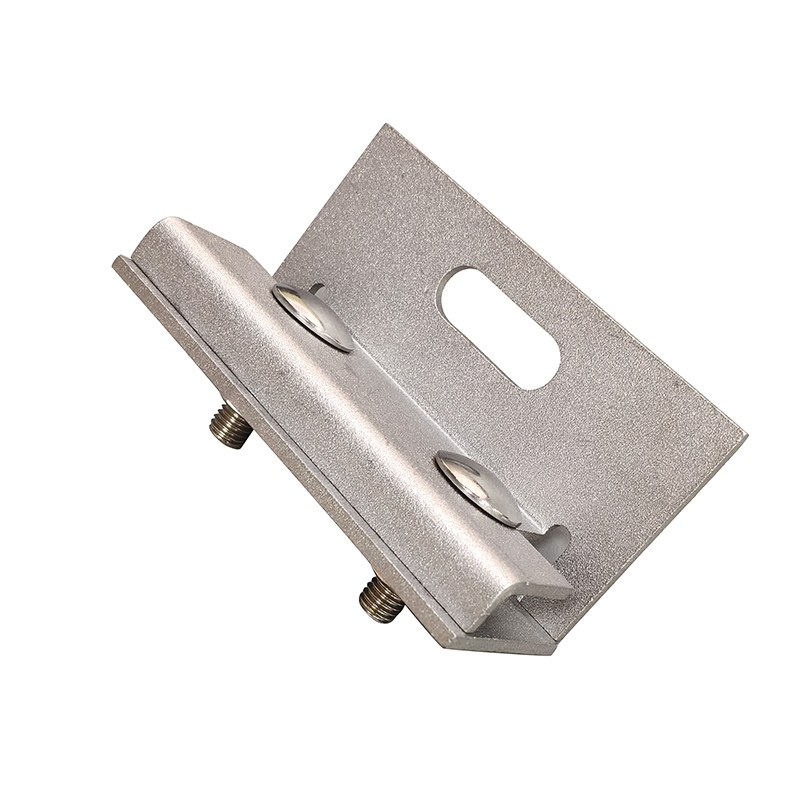

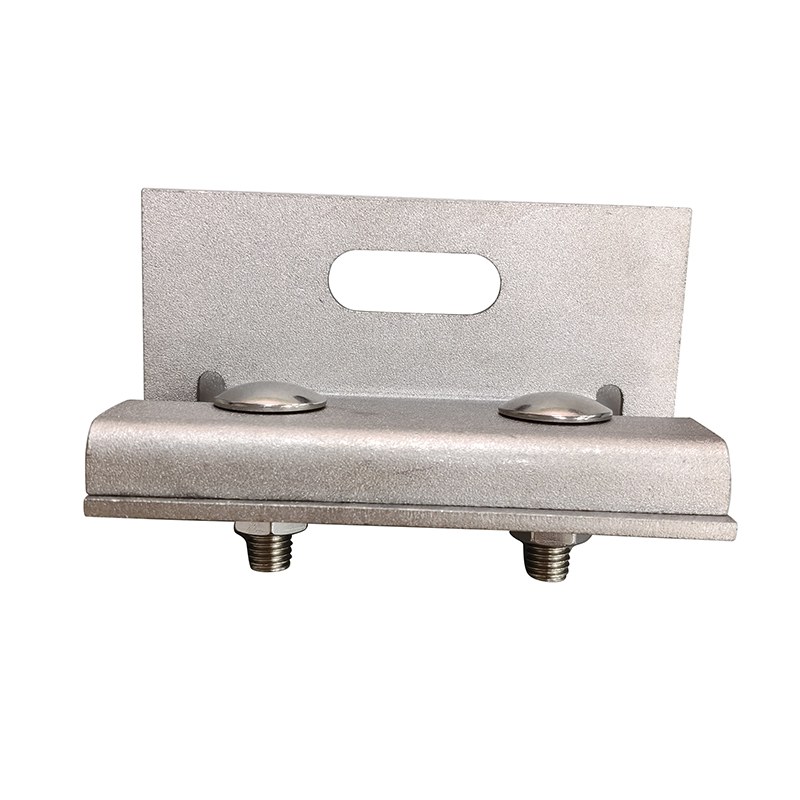

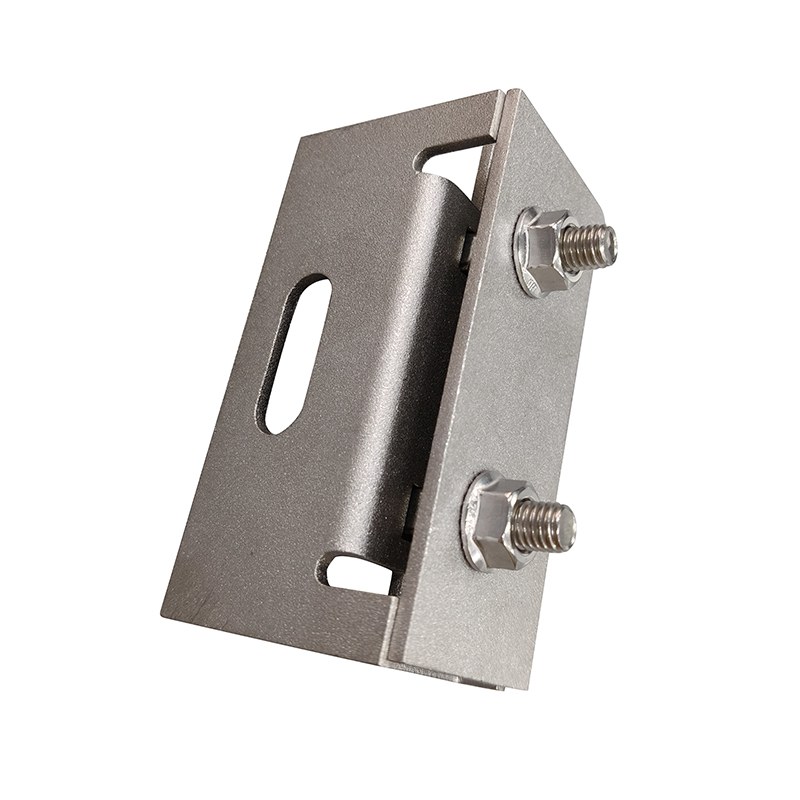

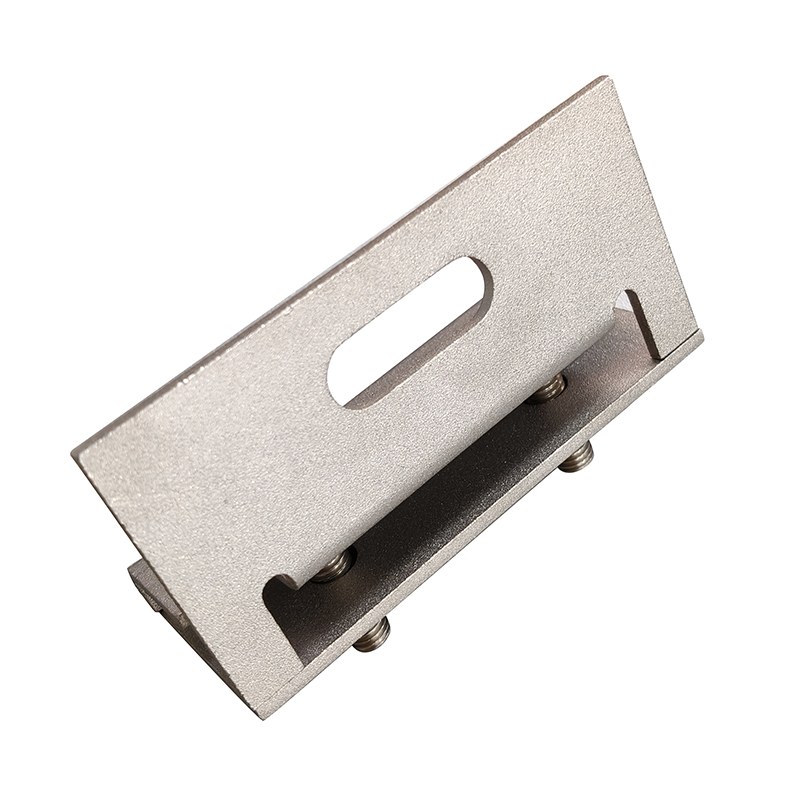

Our Solar Panel Clamps are fittings designed to connect aluminum mounting rails to solar panels. Made from SS430 steel—which contains 16%–18% chromium—Solar Panel Clamps offer excellent corrosion resistance and superior thermal conductivity compared to austenitic steel.

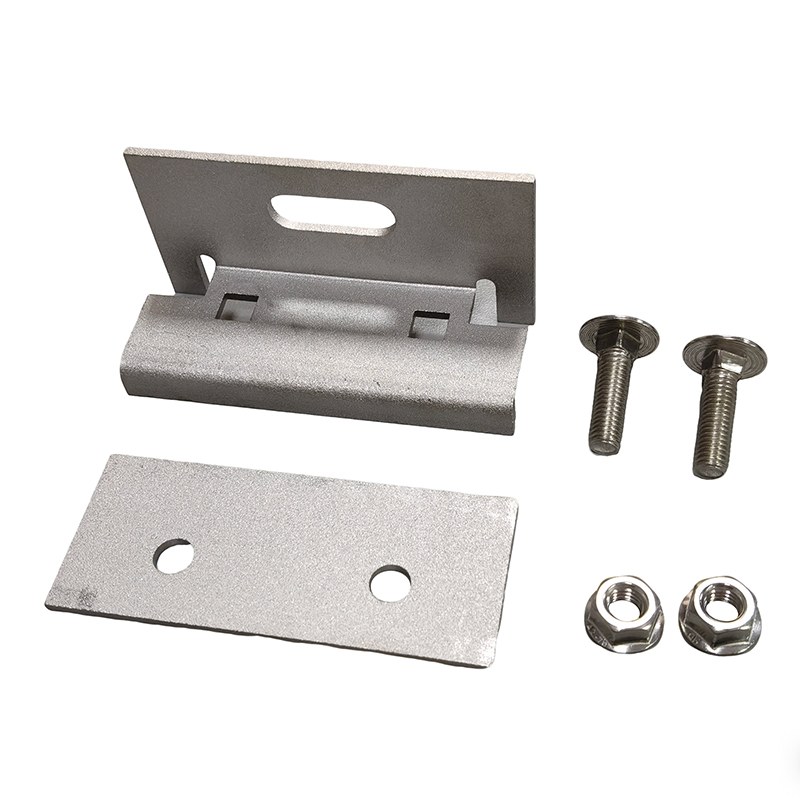

The surface is sandblasted, and the assembly includes an upper clamping plate, a lower support plate, and high-strength bolts and nuts, making it compatible with standard PV mounting rails and module frames.

Advantages: The sandblasted surface thoroughly removes scale, enhancing coating adhesion and corrosion resistance. The clamps offer excellent thermal conductivity and high load-bearing capacity, and are windproof, waterproof, and shock-resistant, ensuring safety and durability with a service life of up to 25 years.

Installation: Our solar panel clamps feature a simple design and high mechanical strength, significantly improving installation efficiency. First, snap the clamp into the rail groove and adjust it to a vertical position; align it with the module frame and press lightly to secure. Insert the module and tighten the bolts. After installation, gently pull to check for stability and ensure the frame is securely grounded.

Product Application

Our SS430 Solar Panel Clamps are suitable for rooftop PV installation systems of various designs and offer excellent stability. Solar Panel Clamps can also be used in ground-mounted PV power plants, residential PV systems, and on aluminum-magnesium-manganese metal roofs.
